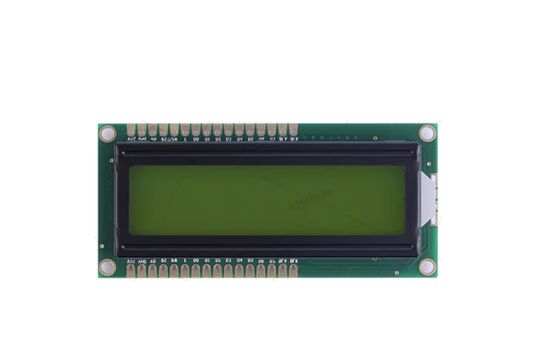

Monochrome 16x2 COB Character LCD Module STN Blue Negative 1602W-6 AIP31066L 5V

Products

Monochrome 16x2 COB Character LCD Module STN Blue Negative 1602W-6 AIP31066L 5V

MOQ:	5 pieces
Price:	$1.66-2.02/pieces
Standard Packaging:	10105
Delivery Period:	14-60 days
Payment Method:	T/T
Supply Capacity:	10000 pieces

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin

Guangdong, China

Brand Name

Certification

CE, ROHS

Model Number

YMC1602SB-X29

Highlight:

16x2 COB character LCD module

STN blue negative LCD display

5V monochrome LCD module

Product Description

YMC1602SB-X29 16x2 COB Character LCD Module Monochrome STN AIP31066L IC 5V

This industrial grade 16x2 character LCD module adopts advanced COB (Chip On Board) packaging design with monochrome STN transmissive display effect, driven by professional AIP31066L driver IC. It features 5.0V DC logic supply voltage, 16(characters)×2(line) standard display format, 8-bit parallel 16-pin interface and 1/16 Duty & 1/4 Bias driving method. With precise mechanical tolerance, integrated white LED backlight and RoHS compliance, it has stable performance and high reliability, widely applied in industrial control, measuring instruments, smart home appliances, embedded systems and various monochrome display scenarios.

Product Specifications

Display Type	Monochrome COB Character LCD Module (STN, Transmissive)
Part No.	1602W-6
Model No.	YMC1602SB-X29
Display Format	16(characters) × 2(line)
Driver IC	AIP31066L
Connection Type	COB (Chip On Board)
Interface Type	8-bit Parallel Interface (16-pin)
Pin Number & Function	16PIN (1-VSS/GND, 2-VDD, 3-VO, 4-RS, 5-R/W, 6-E, 7-DB0, 8-DB1, 9-DB2, 10-DB3, 11-DB4, 12-DB5, 13-DB6, 14-DB7, 15-A/LED+, 16-K/LED-)
Logic Supply Voltage (VDD)	5.0V DC
Driving Method	1/16 Duty, 1/4 Bias
Viewing Direction	6 O'clock
Backlight Type	White LED Backlight
Module Dimension (Max)	80.00mm(W) × 36.00mm(H) × 11.0mm(T)
Viewing Area (V/A)	64.00mm(W) × 16.00mm(H)
Effective Display Area (A/A)	56.21mm(W) × 11.50mm(H)
Dot Size	0.56mm(W) × 0.66mm(H)
Dot Pitch	0.60mm(W) × 0.70mm(H)
Ulteriorly Tolerance	±0.3mm
Compliance	RoHS Compliant

Product Features

16×2 character COB packaging design, STN monochrome transmissive display with clear and sharp character presentation
Professional AIP31066L driver IC, 1/16 Duty & 1/4 Bias driving method for stable and anti-interference performance
8-bit parallel 16-pin standard interface, simple circuit connection and high compatibility with embedded control systems
5.0V DC standard logic supply voltage, matching industrial power supply specifications for easy system integration
6 O'clock viewing direction, optimized for front-facing operation and observation scenarios
Integrated white LED backlight with uniform brightness, suitable for various ambient light environments
Compact module size (80×36×11.0mm Max), ideal for space-constrained electronic product design and assembly
High precision mechanical parameters with ±0.3mm tolerance, ensuring consistent product assembly and stable quality
RoHS compliant with environmentally friendly materials, meeting global market import and export standards
COB chip-on-board structural design, high structural reliability and durability for long-term application

Product Applications

Industrial control equipment and intelligent operation control panels
Portable measuring instruments and precision electronic test meters
Smart home appliance control panels and mini character display screens
Embedded system display modules and IoT terminal control devices
Handheld consumer electronics and battery-powered character display products
Office equipment and small instrument display interfaces
Smart sensor terminals and industrial data acquisition equipment
DIY electronic projects and embedded development kits

Dimension Drawing
