YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface

YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface

YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface

Brand Name: YZY
Model Number: YBN022EGS-Q1(MSP2202)
MOQ: 500
Price: $4.5-5/pieces
Payment Terms: T/T
Supply Ability: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
China
Certification:
CE/ROHS
Type:
SPI Display
Display Size:
2.2 Inch
Supplier Type:
Factory
Packaging Details:
16*15*6(cm)/23g
Highlight:

2.2 inch SPI Display

,

240*320 Resolution LCD Module

,

SPI Interface TFT Display

Product Description
YBN022EGS-Q1 2.2-inch SPI Display LCD Module with 240×320 Resolution and SPI Interface
High-performance 2.2-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.

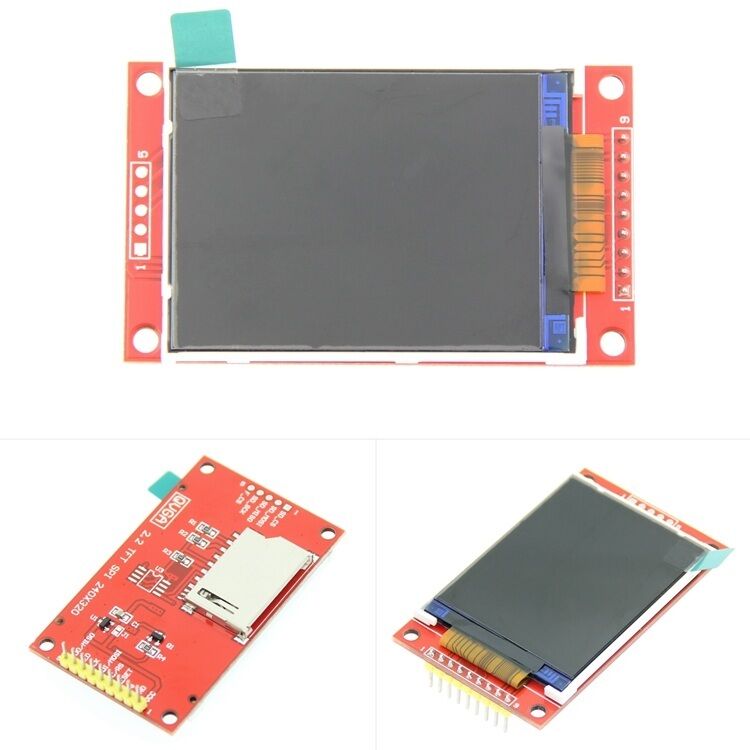

YBN022EGS-Q1 2.2-inch SPI Display LCD Module
Product Features
  • 2.2-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 high resolution for clear, sharp display quality
  • SPI serial bus interface requiring minimal I/O connections
  • Integrated SD card slot for easy expansion and experimentation
  • Comprehensive sample programs provided for quick development
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support included
Technical Specifications
Parameter Specification
Size 2.2 inch
SKU MSP2202
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 33.84×45.12 (mm)
Dimensions 40.10×67.20 (mm)
VCC Power Voltage 3.3V / 5V
Power Consumption 0.42W
Logic IO Port Voltage 3.3V (TTL)
Weight 25g
Interface Description

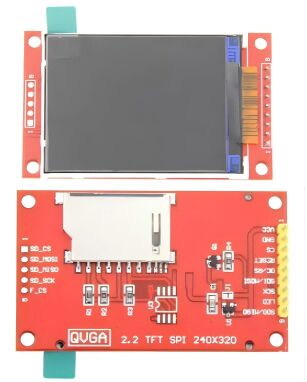

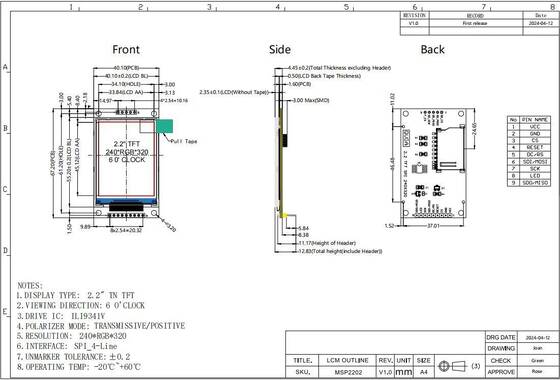

YBN022EGS-Q1 Interface Diagram YBN022EGS-Q1 Interface Pinout
