BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications
  • name
  • name
  • name

BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications

MOQ: 5 pieces
Price: $42.31-51.21/pieces
Standard Packaging: 40*35*18
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GV101WXM-N80
Highlight:

10.1 Inch TFT LCD Module

,

1280x800 Resolution LCD Display Module

,

500 cd/m² Brightness BOE LCD Panel

Product Description
BOE GV101WXM-N80 10.1 Inch LCD Module
High-performance 10.1-inch a-Si TFT LCD module with 1280×800 WXGA resolution, 500 cd/m² brightness, and dual LVDS/eDP 1.2 interface. Designed for industrial control, medical devices, and commercial display applications.
Product Overview
This industrial-grade 10.1-inch TFT LCD module features WXGA high resolution with RGB vertical bars pixel layout and 85-degree full viewing angle. Utilizing ADS constant black transmissive display technology with BOE original panel, it includes WLED backlight with 30K hours lifespan and 3.3V typical supply voltage. Compact 228.2×148.85×4.9 mm dimensions with 3H hard coating make it ideal for industrial HMI, medical equipment, portable devices, and professional display systems.
Technical Specifications
Display Type10.1 Inch a-Si TFT-LCD Module
Module BrandBOE
Model NumberGV101WXM-N80
Panel Size10.1 Inch
LCD Typea-Si TFT-LCD
Resolution1280(RGB) × 800 Pixels
Pixel LayoutRGB vertical bars
Display ModeADS, Constant black display, Transmissive
Viewing AngleAll (85/85/85/85 Typ.)
Interface40 pins LVDS (1ch, 8-bit), eDP 1.2, HBR1 (2.7G/lane), Terminal
Brightness500 cd/m² (Typ.)
Contrast Ratio1300:1 (Typ.)
Response Time30 ms (Typ.) (Tr+Td)
Refresh Rate60Hz
Color Depth16.7M, 45% NTSC
BacklightWLED, 30K Hour lifespan, Edge side 1-LED Lighting Bar Type
Surface TreatmentHard coating (3H)
Voltage Supply3.3V (Typ.)
Operating TemperaturePlease consult for industrial grade options
Storage TemperaturePlease consult for industrial grade options
Outline Dimension228.2(W) × 148.85(H) × 4.9(D) mm
Active Area (AA)216.96(W) × 135.6(H) mm
Weight150g (Max.)
ComplianceRoHS Compliant
Key Features
  • 10.1-inch a-Si TFT LCD with 1280×800 WXGA resolution for sharp, clear display
  • RGB vertical bars pixel layout for accurate color reproduction
  • 85-degree full viewing angle for optimal visibility from all directions
  • ADS constant black transmissive display mode for high contrast and stable image performance
  • Dual interface options: 40-pin LVDS and eDP 1.2 for flexible integration
  • 500 cd/m² high brightness for clear visibility in bright ambient environments
  • 1300:1 high contrast ratio for deep blacks and vivid colors
  • 30ms fast response time for smooth motion display
  • 60Hz refresh rate for stable video and image rendering
  • 16.7M colors and 45% NTSC color gamut for reliable color performance
  • WLED backlight with 30K hours lifespan for long-term reliability
  • 3H hard coating surface treatment for scratch resistance and durability
  • Compact dimensions for space-saving integration
  • BOE original panel with proven quality and reliability
  • RoHS compliant, meeting international environmental standards
Applications
  • Industrial control panels and human-machine interface (HMI) systems
  • Medical monitoring equipment and diagnostic display devices
  • Portable smart devices and handheld electronics
  • Professional industrial instruments and measurement equipment
  • Automotive infotainment and in-vehicle information displays
  • Security monitoring and surveillance display systems
  • POS terminals and commercial retail display systems
  • Custom industrial display projects and embedded system solutions
Product Documentation
BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications 0

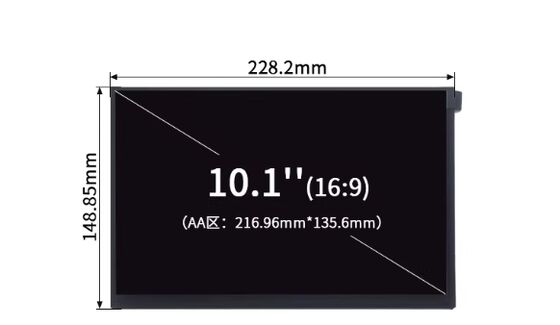

Technical drawing and dimensions
BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications 1
Application examples in industrial and consumer devices
BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications 2
Partner companies and collaborative projects
BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications 3
Manufacturing facility and quality control
BOE GV101WXM-N80 10.1 Inch TFT LCD Module with 1280x800 Resolution and 500 cd/m² Brightness for Industrial Applications 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
  • How do you control product quality?
    Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
  • Do you supply samples?
    Yes, we provide samples for customer evaluation and functional testing.
  • What is the delivery time?
    Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
  • What is the minimum order quantity?
    1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
  • What if we receive missing or defective items?
    Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
  • What are your main products?
    Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
  • What payment methods do you accept?
    We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
  • What shipping methods do you offer?
    DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
