10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m²
  • name
  • name
  • name
  • name

10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m²

MOQ: 5 pieces
Price: $53.86-65.17/pieces
Standard Packaging: 45*30*10
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO1040TVL-N02
Highlight:

10.4 inch TFT LCD module XGA resolution

,

YZY YVO1040TVL-N02 LCD module 500cd/m²

,

TFT LCD display module 1024x768 resolution

Product Description
Innolux YVO1040TVL-N02 10.4 Inch XGA TFT LCD Display Module
High-performance 10.4-inch a-Si TFT LCD module with 1024×768 XGA resolution, LVDS 30-pin interface, and 500cd/m² high brightness. Designed for industrial control, HMI, medical equipment and embedded system applications with original Innolux panel quality.
Product Overview
This 10.4-inch a-Si TFT LCD module features 1024(RGB)×768 XGA resolution with ADS constant black transmissive technology, delivering 1000:1 high contrast ratio and 80/80/80/80 minimum wide viewing angles. Equipped with a long-life WLED backlight system with 30K hours lifespan, it provides 500cd/m² high brightness for clear visibility in various lighting environments. With 25ms fast response time, 60Hz refresh rate, 16.7M true colors and 60% NTSC color gamut, it ensures smooth motion performance and vivid color reproduction. The RGB vertical bar pixel layout and industrial-grade design make it ideal for harsh industrial environments, embedded systems and professional display solutions with original Innolux reliability and 12-month warranty.
Technical Specifications
Display Type 10.4 Inch a-Si TFT-LCD, LCM
Model Number YVO1040TVL-N02

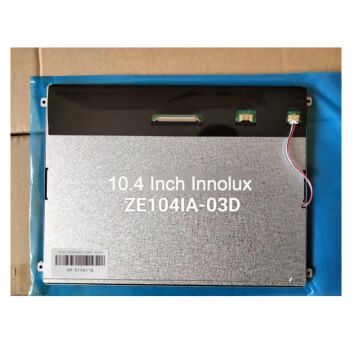

Part Number ZE104IA-03D
Panel Size 10.4 Inch
Resolution 1024(RGB) × 768 Pixels, XGA
Pixel Layout RGB Vertical Bars
Display Mode ADS, Constant Black Display, Transmissive
Viewing Angle 80/80/80/80 (Min.)
Interface LVDS (1 ch, 8-bit), 30 pins Terminal
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Color Depth 262K/16.7M (8-bit), 60% NTSC
Response Time 25 ms (Typ.) (Tr+Td)
Refresh Rate 60Hz
Backlight Type WLED, 30K Hour
Power Supply 3.3V (Typ.)
Active Area (AA) 210.432(H) × 157.824(V) mm

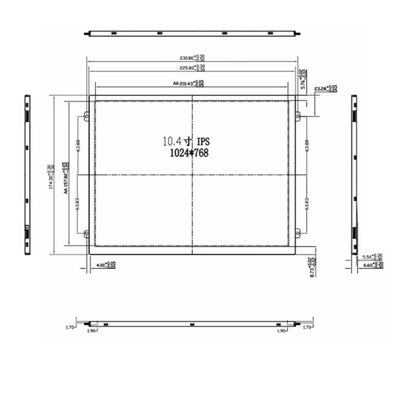

Outline Dimension 220.53 × 168.02 × 1.04 mm
Warranty 12 Months
Compliance RoHS Compliant
Key Features
  • 10.4-inch industrial-grade a-Si TFT LCD with 1024×768 XGA resolution for sharp, clear display
  • ADS constant black transmissive technology with 1000:1 high contrast ratio for deep blacks
  • 80/80/80/80 minimum wide viewing angle for consistent image quality from all directions
  • 500cd/m² high brightness for excellent visibility in bright and industrial environments
  • 16.7M true colors with 60% NTSC color gamut for vivid and accurate color reproduction
  • 25ms fast response time and 60Hz refresh rate for smooth motion performance
  • Long-life WLED backlight system with 30K hours lifespan for reliable long-term use
  • LVDS 1-channel 8-bit 30-pin terminal interface for stable and reliable signal transmission
  • RGB vertical bar pixel layout for standard display compatibility
  • Slim 1.04mm thickness design for easy integration into embedded systems and devices
  • Original Innolux panel quality with 12-month warranty and comprehensive after-sales support
  • RoHS compliant, meeting international environmental and safety standards
Applications
  • Industrial control panels and HMI (Human-Machine Interface) systems
  • Medical equipment and diagnostic display solutions
  • Embedded systems and industrial automation devices
  • Digital signage and commercial display terminals
  • Test and measurement instruments and industrial monitors
  • Automotive display and in-vehicle infotainment systems
  • Portable industrial devices and handheld terminals
  • Gaming machines, kiosks and self-service terminals
  • Aerospace and defense display applications
  • Smart home and IoT control panel displays
Product Documentation
10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m² 0
Product Image
10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m² 1
Application examples in industrial and consumer devices
10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m² 2
Partner companies and collaborative projects
10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m² 3
Manufacturing facility and quality control environment
10.4 Inch YZY YVO1040TVL-N02 TFT LCD Module 1024x768 XGA Resolution 500cd/m² 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
