HM150X01-N01 15.0 Inch XGA TFT LCD Module with 1024x768 Resolution and 350nit Brightness for Industrial Display
  • name
  • name
  • name

HM150X01-N01 15.0 Inch XGA TFT LCD Module with 1024x768 Resolution and 350nit Brightness for Industrial Display

MOQ: 100 pcs
Price: $54.99-84.99 Piece
Payment Method: ,T/T
Supply Capacity: Up to 1,000 pcs/day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
BOE
Certification
CE，RoHS
Model Number
HM150X01-N01
Highlight:

15.0 Inch TFT LCD Module

,

1024x768 XGA Resolution LCD Screen

,

350nit Brightness Industrial Display Panel

Product Description
HM150X01-N01 15.0 Inch XGA TFT LCD Module
15.0-inch TFT LCD module with XGA resolution (1024×768), LVDS interface, and 16.2M color display. Features LED backlight with replaceable light bar design and 350nit brightness for industrial and professional applications.
Product Overview
The HM150X01-N01 is a high-performance 15.0-inch TFT LCD module designed for industrial display applications. With XGA 1024×768 resolution and LVDS interface, it delivers stable, clear image output with 16.2M colors (6-bit + FRC) for vivid display performance.
Key Features
  • 15.0-inch TFT LCD module for industrial display applications
  • XGA 1024×768 resolution for stable and clear image output
  • Standard LVDS interface for reliable signal transmission
  • 16.2M colors (6-bit + FRC) for vivid and smooth display performance
  • High brightness up to 350 cd/m² for better visibility
  • LED backlight with replaceable LED light bar design
  • Wide operating temperature range for demanding environments
  • Suitable for OEM integration and bulk supply projects

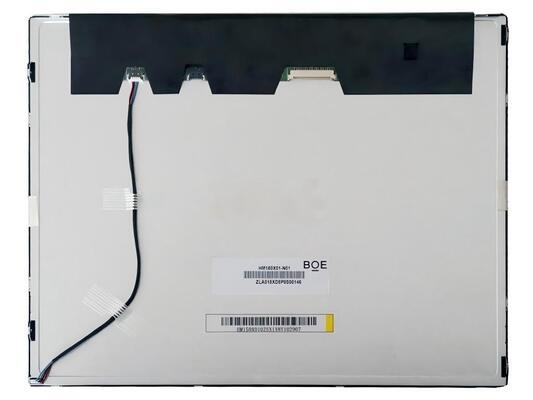

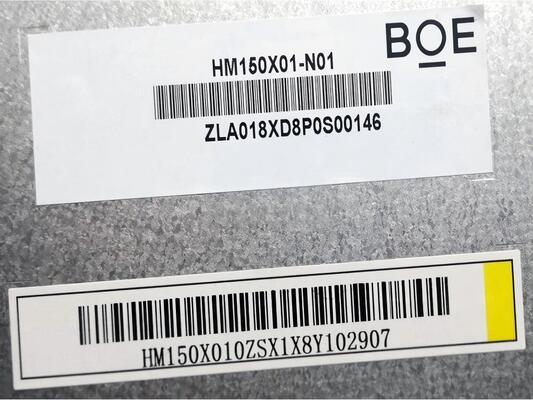

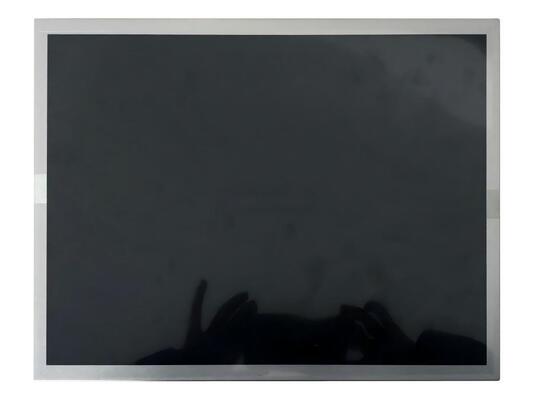

Product Display
HM150X01-N01 15.0 Inch XGA TFT LCD Module with 1024x768 Resolution and 350nit Brightness for Industrial Display 0
Technical Specifications
Display Size15.0 Inch
Resolution1024 × 768 (XGA)
Display Area304.128 × 228.096 mm
Outline Size326.5 × 253.5 × 9.7 mm (Typ.), 10 mm (Max)
Brightness350 cd/m² (Typ.)
Display Colors16.2M Colors (6-bit + FRC)
Signal InterfaceLVDS
Operating Temperature-20 ~ +70 °C
Storage Temperature-20 ~ +70 °C
Application Scenarios
  • TFT-LCD monitor display integration and replacement projects
  • Industrial control panels and HMI terminals
  • Test equipment and measurement instruments
  • Medical and reliability-grade display applications
  • Embedded systems requiring LVDS display solutions
  • OEM equipment displays for long-term supply projects
Company Profile
HM150X01-N01 15.0 Inch XGA TFT LCD Module with 1024x768 Resolution and 350nit Brightness for Industrial Display 1 HM150X01-N01 15.0 Inch XGA TFT LCD Module with 1024x768 Resolution and 350nit Brightness for Industrial Display 2 HM150X01-N01 15.0 Inch XGA TFT LCD Module with 1024x768 Resolution and 350nit Brightness for Industrial Display 3
Extensive Inventory
Over 1,000,000 self-owned stock items including Raspberry Pi boards, LCD monitors, touchscreens, cases, cables, and accessories from leading brands.
Competitive Pricing
Significant price advantages to reduce purchasing costs and save valuable time. We wholesale and distribute new, original, well-known brand electronic components worldwide.
Quality Assurance
Equipped with internationally advanced electronic component testing equipment and scientific storage systems to ensure consistent product quality.
Expert Team
Elite professionals with over 20 years of industry experience and deep understanding of international market trends.
Frequently Asked Questions
How do you control product quality?
Each item undergoes strict testing before shipping to ensure reliability and performance.
Do you supply samples?
Yes, we provide samples for evaluation.
What is the delivery time?
Typically 7 working days after payment confirmation.
What is the minimum order quantity?
1 piece minimum order quantity.
What if we receive missing or defective items?
Please contact us immediately, and we will investigate to provide the best solution promptly.
What are your main products?
Comprehensive range including Raspberry Pi development boards, LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments.
What shipping methods do you offer?
DHL and China Post shipping services available.
