YZY 40x2 COB Character LCD Module with STN Yellow Green Positive Display
  • name
  • name
  • name

YZY 40x2 COB Character LCD Module with STN Yellow Green Positive Display

MOQ: 5 pieces
Price: $6.32-7.69/pieces
Standard Packaging: 25*15*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMC4002SB-X01
Highlight:

40x2 Display Format COB LCD Module

,

STN Yellow Green Positive Character LCD Module

,

5V Logic Supply Monochrome LCD Display

Product Description
YZY 40x2 COB Character LCD Module
Monochrome YMC4002SB-X01 COB Character LCD Module with STN Yellow Green Positive display, driven by ST7066U+ST7065 ICs at 5V logic supply.
Product Overview
This industrial-grade 40x2 character LCD module features advanced COB (Chip On Board) packaging with STN yellow green positive transflective display for high contrast monochrome effect. Driven by professional ST7066U+ST7065 driver ICs, it offers reliable performance with 5.0V DC logic supply, 16-pin parallel interface, and excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage).
Technical Specifications
Specification Details
Display Type Monochrome COB Character LCD Module (STN/Yellow Green, Positive, Transflective)
Part Number YMC4002SB-X01
Display Format 40(characters) × 2(line)
Driver IC ST7066U + ST7065
Interface Type 16-pin Parallel Interface
Logic Supply Voltage 5.0V DC (Typ.)
LCD Driving Voltage 4.5V DC (Typ.)
Driving Method 1/16 Duty, 1/5 Bias
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Viewing Direction 6 O'clock
Backlight Type Yellow Green Side Backlight, 3.0V±0.2V, 30*2mA
Module Dimension (PCB) 182.00mm(W) × 33.00mm(H) × 1.60mm(T)
Compliance RoHS
Key Features
  • 40×2 character COB packaging with STN yellow green positive transflective display for high contrast and clear readability
  • Professional ST7066U+ST7065 driver ICs with 1/16 Duty & 1/5 Bias driving method for stable long-term operation
  • 16-pin parallel interface with standard control logic (RS/R/W/E), compatible with mainstream embedded systems
  • Stable 5.0V logic supply voltage matching industrial standard power specifications
  • 6 O'clock optimized viewing direction for front-facing operation without visual distortion
  • Yellow green side LED backlight with uniform illumination for low-light environments
  • Excellent wide temperature adaptability for reliable performance in harsh industrial conditions
  • Precise mechanical dimensions with detailed mounting parameters for consistent assembly
  • COB chip-on-board design for high structural reliability, anti-vibration and anti-fall
  • RoHS compliant for global market environmental requirements
Applications
  • Industrial control equipment and intelligent operation control panels
  • Portable measuring instruments and precision electronic test meters
  • Smart home appliance control panels and character display screens
  • Embedded system display modules and IoT terminal control devices
  • Medical portable devices and health monitoring equipment
  • Handheld consumer electronics and battery-powered display products
  • Office equipment and small instrument display interfaces
  • Smart sensor terminals and industrial data acquisition equipment
  • DIY electronic projects and embedded development kits
  • Automotive electronic auxiliary display components

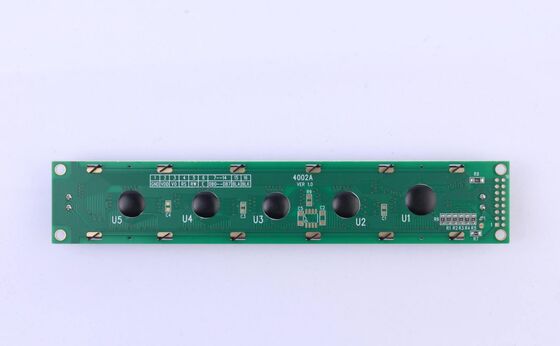

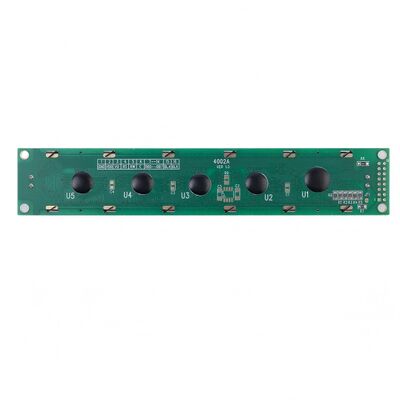

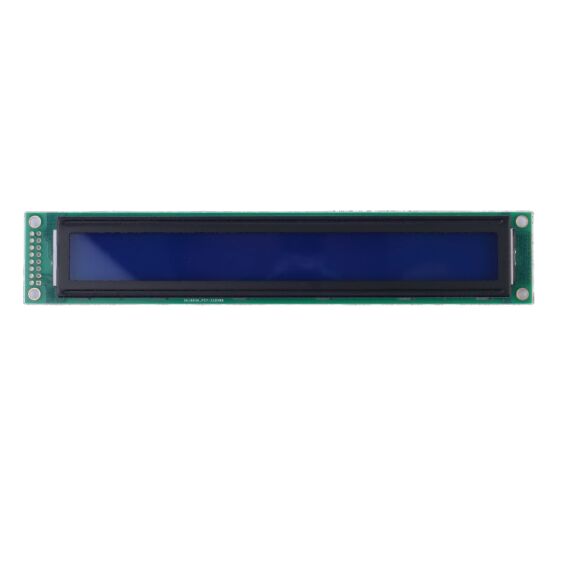

Product Images
