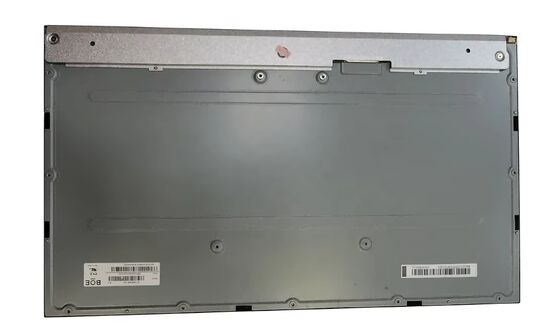

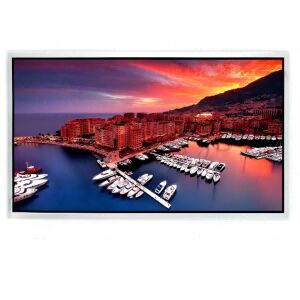

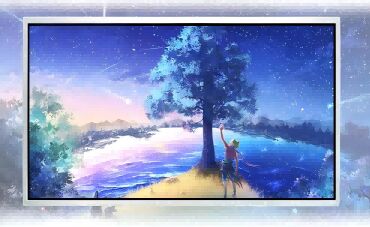

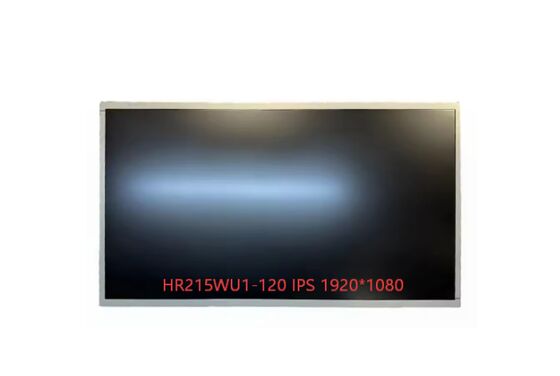

BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface
  • name
  • name
  • name
  • name

BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface

MOQ: 5 pieces
Price: $70.55-77.59/pieces
Standard Packaging: 60*38*18
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
HR215WU1-120
Highlight:

21.5 Inch TFT LCD Module

,

1920×1080 FHD LCD Display Module

,

LVDS Interface BOE LCD Panel

Product Description
BOE HR215WU1-120 21.5 Inch LCD Module
High-performance industrial TFT LCD display module with 1920×1080 FHD resolution, LVDS interface, and robust construction for industrial control, commercial signage, and professional display applications.
Product Overview
This 21.5-inch a-Si TFT LCD module delivers 1920×1080 FHD resolution with 92PPI pixel density and wide 89-degree viewing angles. Featuring ADS normally black transmissive display technology and BOE original factory panel, it incorporates WLED backlight with 30,000-hour lifespan. Designed for industrial environments with operating temperature range of 0-50°C and robust mechanical dimensions.
Technical Specifications
Display Type 21.5 Inch a-Si TFT-LCD, LCM
Module Brand BOE Original Factory
Model Number HR215WU1-120
Resolution 1920(RGB) × 1080 Pixels, FHD, 92PPI
Display Mode ADS, Normally Black, Transmissive
Viewing Angle 89/89/89/89 (Typ.) (CR≥10)
Interface LVDS (2 ch, 8-bit), 30 pins Connector
Brightness 250 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Color Depth 16.7M, 72% NTSC
Backlight WLED [17S4P], 30K hours lifespan, W/O Driver
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Outline Dimension 495.6(H) × 292.2(V) × 11.3(D) mm
Display Area (AA) 476.64(H) × 268.11(V) mm
Compliance RoHS Compliant
Key Features
  • 21.5-inch a-Si TFT LCD with 1920×1080 FHD resolution and 92PPI for sharp, clear industrial display
  • 89-degree wide viewing angle for optimal visibility from all directions
  • ADS normally black transmissive display mode for high contrast and stable image performance
  • LVDS (2 ch, 8-bit) 30-pin interface for reliable long-distance data transmission
  • WLED [17S4P] backlight with 30K hours lifespan for long-term reliability
  • 250 cd/m² brightness and 1000:1 contrast ratio for clear visibility in various lighting conditions
  • 16.7M colors and 72% NTSC color gamut for accurate color reproduction
  • Industrial-grade temperature range (0-50°C operating, -20-60°C storage)
  • Robust 495.6×292.2×11.3 mm outline dimension for stable mechanical integration
  • BOE original factory panel with proven quality and reliability
  • Support OEM&ODM for touch screen customization
  • RoHS compliant, meeting international environmental standards
Applications
  • Industrial control panels and human-machine interface (HMI) systems
  • Commercial digital signage and advertising displays
  • Office automation and enterprise information display systems
  • Professional industrial instruments and measurement equipment
  • Security monitoring and surveillance display systems
  • Medical monitoring equipment and diagnostic display devices
  • POS terminals and commercial retail display systems
  • Custom industrial display projects and embedded system solutions
Product Documentation
BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface 0
Technical drawing and dimensions
BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface 1
Application examples in industrial and consumer devices
BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface 2
Partner companies and collaborative projects
BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface 3
Manufacturing facility and quality control environment
BOE HR215WU1-120 21.5 Inch TFT LCD Module with 1920×1080 FHD Resolution and LVDS Interface 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
