BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface
  • name
  • name
  • name

BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface

MOQ: 5 pieces
Price: $58.61-70.98/pieces
Standard Packaging: 45*30*10
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
GV101WXM-N80
Highlight:

BOE NV156FHM-N42 15.6 inch LCD module

,

FHD LCD module with eDP interface

,

15.6 inch AG surface LCD

Product Description

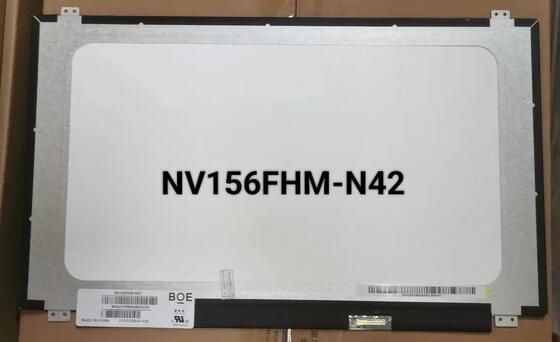

BOE NV156FHM-N42 15.6 Inch FHD LCD Module
High-performance 15.6-inch a-Si TFT LCD module with 1920×1080 FHD resolution, eDP 30-pin interface, and AG anti-glare surface. Designed for business laptop replacement and portable device applications with BOE original panel quality.
Product Overview
This 15.6-inch a-Si TFT LCD module features 1920×1080 FHD high resolution with 16:9 aspect ratio and 60Hz refresh rate, specifically engineered for laptop applications. Utilizing ADS normally black transmissive display technology and driven by BOE original panel, it delivers 262K (6-bit) color depth with reliable eDP 30-pin video connectivity and 220cd/m² brightness. The AG anti-glare surface treatment ensures clear visibility in bright environments, while the WLED backlight offers 15,000 hours of lifespan for long-term reliability.
Technical Specifications
Display Type15.6 Inch a-Si TFT-LCD, LCM (ADS, Normally Black, Transmissive)
Module BrandBOE
Model NumberNV156FHM-N42
Panel Size15.6 Inch
ApplicationLaptop / Notebook
Resolution1920(RGB) × 1080 Pixels, FHD 141PPI
Aspect Ratio16:9 (H:V)
Color Depth262K (6-bit), 45% NTSC
Refresh Rate60Hz
Brightness220 cd/m² (Typ.)
Contrast Ratio800:1 (Typ.) (TM)
Response Time30 ms (Typ.) (Tr+Td)
Viewing Angle85/85/85/85 (Typ.) (CR≥10)
BacklightWLED [10S4P], 15K hours lifespan, With LED Driver (Lower Down side, 1-LED Lighting Bar type, 45*LED Array)
InterfaceeDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector
Surface TreatmentAG (Anti-Glare)
Pixel ArrangementRGB Vertical stripe
Pixel Pitch0.17925 (H) × 0.17925 (V) mm
Outline Dimension359.5(W) × 223.8(V) × 3.2(D) mm (Max.)
Active Area344.16 (H) × 193.59 (V) mm
Weight380g (max.) / 1KG (with packaging)
Power ConsumptionPD: 1.0W (max.), PBL: 3.4W (max.), PTotal: 4.4W (max.)
Operating Temperature0°C ~ 50°C
Storage Temperature-20°C ~ 60°C
ComplianceRoHS Compliant, Lead-free
Key Features
  • 15.6-inch a-Si TFT LCD with 1920×1080 FHD resolution and 141PPI for sharp, clear laptop display
  • 16:9 widescreen aspect ratio for immersive multimedia and office productivity
  • 60Hz refresh rate for smooth video playback and responsive user interaction
  • ADS normally black transmissive display mode for stable image performance and high contrast
  • 262K (6-bit) color depth with 45% NTSC color gamut for reliable color reproduction
  • 220 cd/m² brightness and 800:1 contrast ratio for clear visibility in various lighting conditions
  • 85/85/85/85 wide viewing angle for comfortable multi-angle viewing
  • eDP (2 Lanes) 30-pin interface (eDP1.2, HBR1 2.7G/lane) for high-speed, stable data transmission
  • AG (Anti-Glare) surface treatment to reduce reflections and improve readability in bright environments
  • WLED backlight [10S4P] with 15K hours lifespan and built-in LED driver for long-term reliability
  • Lower Down side 1-LED Lighting Bar (45*LED Array) for uniform illumination
  • BOE original panel with proven quality and reliability for laptop replacement applications
  • Compact 3.2mm max thickness design optimized for seamless integration into notebook devices
  • RoHS compliant and lead-free, meeting international environmental and safety standards
Applications
  • Laptop / Notebook screen replacement and repair
  • Business portable computing devices and mobile workstations
  • Industrial portable terminals and field operation devices
  • Office equipment and enterprise notebook refurbishment
  • Consumer electronics and personal mobile displays
  • Custom embedded systems and portable HMI solutions
  • Educational devices and student notebook upgrades
  • Commercial digital signage and advertising displays
Product Documentation
BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface 0

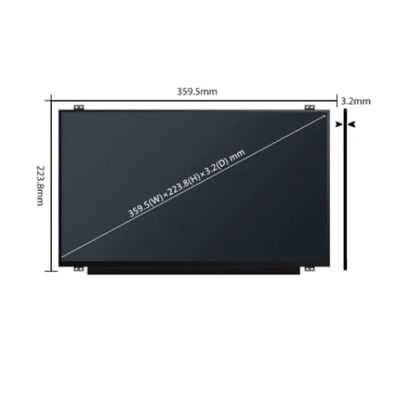

Technical drawing and dimensions
BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface 1
Application examples in industrial and consumer devices
BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface 2
Partner companies and collaborative projects
BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface 3
Manufacturing facility and quality control environment
BOE NV156FHM-N42 15.6 Inch FHD LCD Module with eDP 30-Pin Interface and AG Surface 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry. Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
