YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG
  • name
  • name
  • name

YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG

MOQ: 5 pieces
Price: $53.85-65.19/pieces
Standard Packaging: 65*45*10
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YVO2380VQL-N1
Highlight:

23.8 inch TFT LCD open cell

,

1920x1080 resolution LCD module

,

30Pin LVDS TFT display

Product Description
YVO2380VQL-N1 23.8 Inch FHD TFT LCD Open Cell
High-performance 23.8-inch a-Si TFT LCD open cell with 1920×1080 FHD resolution, 30-pin 2ch LVDS interface, and anti-glare 3H hard coating with 25% haze. Designed for monitor assembly, industrial displays, commercial signage and embedded system applications with built-in driver ICs.
Product Overview
This 23.8-inch a-Si TFT LCD open cell features 1920×1080 FHD resolution with 0.2745mm pixel pitch and RGB vertical stripe pixel arrangement. Adopting normally black transmissive technology, it delivers 16.7M 8-bit true colors for vivid and accurate display. Equipped with a 30-pin 2ch LVDS circuit board and integrated driver ICs, it supports I2C auto Vcom function for stable performance. The high-resolution adaptable AG surface with 3H hard coating and 25% haze ensures clear visibility in strong light with excellent scratch resistance. The backlight unit is not built in, making it ideal for monitor assembly, industrial control and commercial display solutions with reliable quality and 12-month warranty.
Technical Specifications
Display Type 23.8 Inch a-Si TFT-LCD, Open Cell
Model Number YVO2380VQL-N1

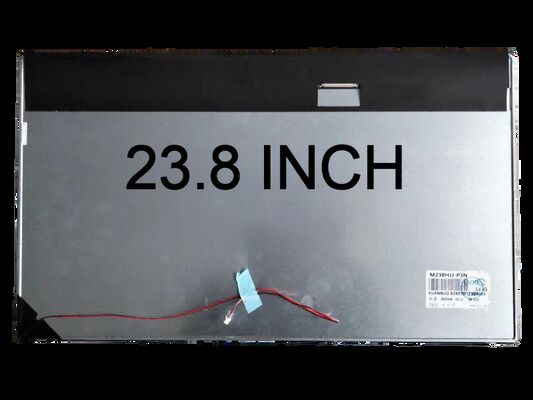

Part Number M238HJJ-P3N-XN
Panel Size 23.8 Inch Diagonal
Resolution 1920(RGB) × 1080 Pixels, FHD
Pixel Pitch 0.2745(H) × 0.2745(V) mm
Pixel Arrangement RGB Vertical Stripe
Display Mode Normally Black, Transmissive
Display Orientation Signal Input with "INX"

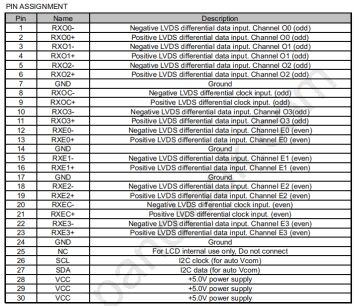

Interface LVDS, 30-pin 2ch, with Driver ICs
Color Depth 16.7M (8-bit)
Surface Treatment High Resolution Adaptable AG, 3H Hard Coating, Haze: 25%
Power Consumption Total Cell: 6.11W Max
Supply Voltage +5.0V Power Supply
Backlight Not Built In
Compliance RoHS Compliant
Key Features
  • 23.8-inch a-Si TFT LCD open cell with 1920×1080 FHD resolution for sharp, clear display
  • 0.2745mm pixel pitch and RGB vertical stripe arrangement for precise image rendering
  • Normally black display mode for high contrast and stable image performance
  • 16.7M 8-bit true colors for vivid and accurate color reproduction
  • 30-pin 2ch LVDS interface with integrated driver ICs for easy integration
  • I2C SCL/SDA auto Vcom function for optimized display performance
  • High-resolution adaptable AG surface with 3H hard coating and 25% haze to reduce reflection
  • Excellent scratch resistance for long-term use in industrial and commercial environments
  • Low power consumption with 6.11W max total cell power
  • +5.0V standard power supply for wide compatibility
  • Backlight unit not built in, ideal for monitor assembly and custom display solutions
  • 12-month warranty and comprehensive after-sales support
  • RoHS compliant, meeting international environmental standards
Applications
  • Desktop monitor assembly and refurbishment
  • Industrial control panels and HMI (Human-Machine Interface) systems
  • Commercial digital signage and advertising displays
  • Embedded systems and industrial automation devices
  • Test and measurement instruments and industrial monitors
  • Gaming machines, kiosks and self-service terminals
  • Medical equipment and diagnostic display solutions
  • Custom display projects and monitor replacement parts
Product Documentation
YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG 0
Product Image
YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG 1
Application examples in industrial and consumer devices
YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG 2
Partner companies and collaborative projects
YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG 3
Manufacturing facility and quality control environment
YZY 23.8 Inch YVO2380VQL-N1 a-Si TFT LCD Open Cell 1920x1080 30Pin 2ch LVDS 3H AG 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China--a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
