YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications
  • name
  • name
  • name

YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications

MOQ: 500
Price: $12-13.5/pieces(MSP3526);$9-11/pieces(MSP3525)
Standard Packaging: 16*15*6(cm)/73g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBC035GJS-Q1(MSP3526)/YBN035GJS-Q1(MSP3525)
Document
YBC035GJS-Q1（MSP3526）Da...et.pdf
Type:
SPI Display
Display Size:
3.5 Inch
Supplier Type:
Factory
Highlight:

3.5 inch SPI Display

,

320*480 Resolution TFT LCD Display

,

Capacitive Touch Screen IPS Display Module

Product Description
YBC035GJS-Q1 3.5-inch SPI Module Touch Screen IPS TFT Display
High-performance 3.5-inch SPI display LCD module featuring 320×480 resolution and SPI interface for embedded applications with capacitive touch screen.
Product Overview
The MSP3525 and MSP3526 are 3.5-inch IPS color LCD display modules, with MSP3525 without touch screen and MSP3526 featuring capacitive touch screen. The display module utilizes a 4-wire SPI interface requiring only 5 IOs for display functionality. The 320×480 high-definition resolution makes it suitable for various products requiring screen display capabilities.
YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications 0 YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications 1
Key Features
  • 3.5-inch color screen with 320×480 resolution supporting 65K colors
  • IPS full view panel with excellent viewing angles
  • On-board level conversion circuit compatible with 5V and 3.3V MCU
  • 4-wire SPI serial bus for I/O pin efficiency
  • Optional capacitive touch functionality
  • Module input supports 2.54 pin interface and FPC extension interface
  • Integrated micro TF card slot for storage expansion
  • Comprehensive example programs (ESP32/STM32/Arduino UNO/Mage2560/C51/CH32)
  • Low-level driver technical support provided
  • Military-grade testing standards for long-term stable operation
Technical Specifications
Size 3.5 inch
SKU MSP2825 (No Touch); MSP3526 (With Touch)
Resolution 320×480 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 48.96(W)×73.44(H) mm
Dimensions No Touch: 55.5(W)×98.0(H)×12.98(D) mm
With Touch: 55.5(W)×98.0(H)×14.28(D) mm
View Angle ALL 0'CLOCK
VCC Power Voltage 3.3V / 5V
Luminance 230 Cd/m² (no touch); 190 Cd/m² (with touch)
Driver IC ST7796U
Power Consumption 0.5W
Logic IO Port Voltage 3.3V (TTL)
Weight No touch: 73g / With touch: 82g

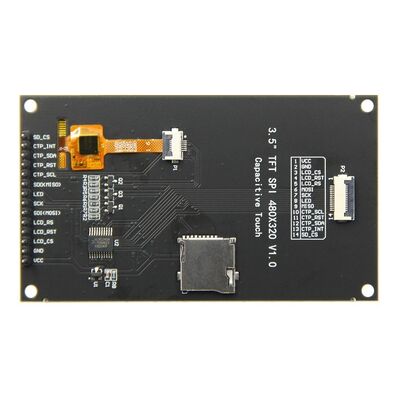

Interface Description
YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications 2 YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications 3
YBC035GJS-Q1 Interface Pinout
Number Pin Label Description
1 VCC Power positive
2 GND Power ground
3 LCD_CS LCD selection control signal, Low level active
4 LCD_RST LCD reset control signal, Low level reset
5 LCD_RS LCD command / data selection control signal High level: data, low level: command
6 SDI(MOSI) SPI bus write data signal (SD card and LCD screen used together)
7 SCK SPI bus clock signal (SD card and LCD screen used together)
8 LED LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)
9 SDO(MISO) SPI bus read data signal (SD card and LCD screen used together)
10 CTP_SCL Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected)
11 CTP_RST Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected)
12 CTP_SDA Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected)
13 CTP_INT Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected)
14 SD_CS SD card selection control signal, low level active (without SD card function, can be disconnected)

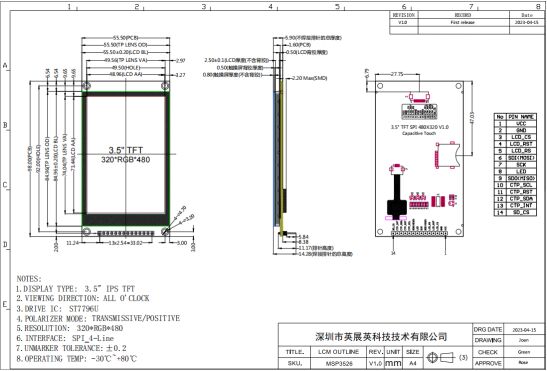

Product Dimensions
YBC035GJS-Q1 3.5-inch SPI Display with 320*480 Resolution and Capacitive Touch Screen for Embedded Applications 4
