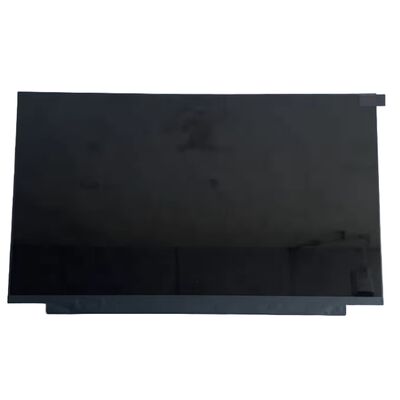

15.6" FHD 1920×1080 eDP TFT LCD Screen Module for Business Laptop 300cd/m²

MOQ: 5 pieces
Price: $45.99-55.39/pieces
Standard Packaging: 40*35*18
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
DV15X0M-N10
Highlight:

15.6 inch FHD TFT LCD screen

,

1920x1080 eDP laptop display

,

300cd/m² brightness LCD module

Product Description

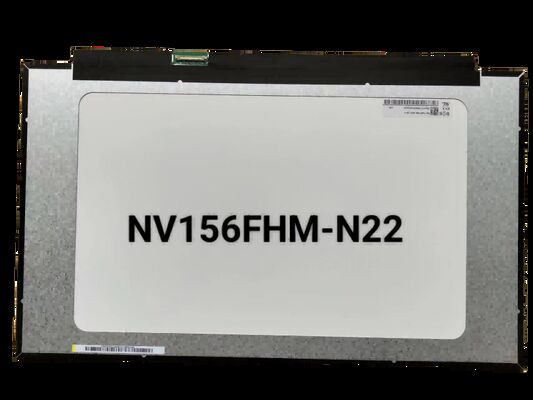

BOE NV156FHM-N22 15.6 Inch FHD LCD Display Module
High-performance 15.6-inch a-Si TFT LCD module with 1920×1080 FHD resolution, 16:9 aspect ratio, and eDP 30-pin interface. Designed for business laptop replacement and portable device applications with BOE original panel quality.
Product Overview
This 15.6-inch a-Si TFT LCD module features 1920×1080 FHD high resolution with 16:9 aspect ratio and 60Hz refresh rate, specifically engineered for business laptop applications. Utilizing a-Si TFT-LCD LCM technology and driven by BOE original panel, it delivers 262K (6-bit) color depth with reliable eDP 30-pin video connectivity and 300cd/m² brightness.
Technical Specifications
Display Type 15.6 Inch a-Si TFT-LCD, LCM (Normally Black)
Module Brand BOE
Model Number NV156FHM-N22
Panel Size 15.6 Inch
Application Laptop / Notebook (For Business)
Resolution 1920(RGB) × 1080 Pixels, FHD 141PPI
Aspect Ratio 16:9 (W:H)
Color Depth 262K (6-bit), 45% NTSC Wide Color Gamut
Refresh Rate 60Hz
Brightness 300cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.)
Response Time 30ms
Viewing Angle 85/85/85/85 (Typ.), CR≥10
Backlight Type LED White (Dual LED, IF=40mA, VF=3.2V)

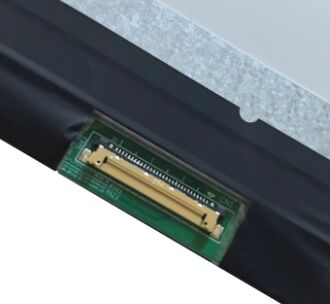

Video Connector eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane), 30 pins Connector
Outline Size 350.66(W) × 216.15(H) × 3.2(D) mm (Max.)
Active Area 344.16(H) × 193.59(V) mm
Weight 370g (Max.)
Operating Temperature -20°C ~ 70°C
Storage Temperature -30°C ~ 80°C
Touch Screen Without
Compliance RoHS Compliant, Lead-free
Warranty 1-Year, Return and Replacement Service
Key Features
  • 15.6-inch a-Si TFT LCD with 1920×1080 FHD resolution for sharp, clear business laptop display
  • 16:9 widescreen aspect ratio for immersive multimedia and office productivity
  • 60Hz refresh rate for smooth video playback and responsive user interaction
  • 262K (6-bit) color depth with 45% NTSC wide color gamut for reliable color performance
  • 300cd/m² high brightness and 1200:1 contrast ratio for clear visibility in various environments
  • eDP 30-pin interface (2 Lanes, eDP1.2) for high-speed, stable data transmission
  • Wide 85/85/85/85 viewing angle for comfortable multi-angle viewing
  • Dual white LED backlight (IF=40mA, VF=3.2V) for consistent, bright illumination
  • BOE original panel with proven quality and reliability for business laptop replacement
  • Slim 3.2mm max thickness design optimized for seamless integration into notebook devices
  • RoHS compliant and lead-free, meeting international environmental and safety standards
  • 1-Year warranty with return and replacement after-sales service
Applications
  • Business laptop / notebook screen replacement and repair
  • Commercial portable computing devices and mobile workstations
  • Industrial portable terminals and field operation devices
  • Office equipment and enterprise notebook refurbishment
  • Consumer electronics and personal mobile displays
  • Custom embedded systems and portable HMI solutions
  • Educational devices and student notebook upgrades
  • Business-oriented mobile display and digital signage applications
Product Documentation
15.6" FHD 1920×1080 eDP TFT LCD Screen Module for Business Laptop 300cd/m² 0
Product Description
15.6" FHD 1920×1080 eDP TFT LCD Screen Module for Business Laptop 300cd/m² 1
Application examples in industrial and consumer devices
15.6" FHD 1920×1080 eDP TFT LCD Screen Module for Business Laptop 300cd/m² 2
Partner companies and collaborative projects
15.6" FHD 1920×1080 eDP TFT LCD Screen Module for Business Laptop 300cd/m² 3
Manufacturing facility and quality control environment
15.6" FHD 1920×1080 eDP TFT LCD Screen Module for Business Laptop 300cd/m² 4
Shipping methods and delivery information
Company Profile
Shenzhen Yingzhanying Technology Co., Ltd. (YZY) was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company specializes in custom services, R&D, sales and after-sales services in the optoelectronic display industry.
Products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, and financial services.
Frequently Asked Questions
How do you control product quality?
Each product undergoes strict testing before shipping following MIL-STD-105E sampling plan and multiple reliability tests including temperature cycling, vibration test and display performance validation.
Do you supply samples?
Yes, we provide samples for customer evaluation and functional testing.
What is the delivery time?
Typically 7 working days after payment confirmation for standard orders. Custom orders may require additional lead time.
What is the minimum order quantity?
1 piece minimum order quantity for sample orders, with flexible MOQ for bulk production.
What if we receive missing or defective items?
Contact us immediately for investigation and prompt resolution. We offer replacement or refund for confirmed quality issues.
What are your main products?
Comprehensive range including LCD modules, LCM, touch modules, LCD panels, FPC boards and optoelectronic materials for industrial, medical, automotive and consumer electronics applications.
What payment methods do you accept?
We accept T/T (Telegraphic Transfer) payments, Western Union, and PayPal for small orders.
What shipping methods do you offer?
DHL, FedEx, UPS and China Post shipping services available. Express delivery is available for urgent orders.
