12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control
  • name
  • name
  • name

12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control

MOQ: 5 pieces
Price: $59.96-70.58/pieces
Standard Packaging: 45*30*10
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
PV121X0B-N10
Highlight:

12.1 inch BOE TFT LCD module

,

XGA TFT LCD display module

,

LVDS interface industrial LCD module

Product Description
BOE PV121X0B-N10 12.1 Inch XGA TFT LCD Display Module
High-performance 12.1-inch a-Si TFT LCD module with 1024x768 XGA resolution, LVDS 20-pin interface, and 500cd/m² high brightness. Designed for industrial control, HMI, medical equipment and commercial display applications with original BOE panel quality.
Product Overview
This 12.1-inch a-Si TFT LCD module features 1024x768 XGA resolution with ADS normally black transmissive technology, delivering 1200:1 high contrast ratio and 88/88/88/88 ultra-wide viewing angles. Equipped with a long-life WLED backlight system with integrated LED driver, it provides 500cd/m² high brightness for clear visibility in various lighting environments. With 25ms fast response time, 16.7M true colors and 72% NTSC color gamut, it ensures smooth motion performance and vivid color reproduction. The industrial-grade design supports -20°C~+70°C operating temperature, making it ideal for harsh industrial environments, embedded systems and professional display solutions with original BOE reliability and 12-month warranty.
Technical Specifications
Display Type 12.1 Inch TFT-LCD Module
Module Brand BOE
Model Number PV121X0B-N10
Panel Size 12.1 Inch
Resolution 1024(RGB) x 768 Pixels, XGA
Display Mode ADS, Normally Black, Transmissive
Viewing Angle 88/88/88/88 (Typ.) (CR≥10)
Interface LVDS (1 ch, 8-bit), 20 pins Connector
Brightness 500 cd/m² (Typ.)
Contrast Ratio 1200:1 (Typ.)
Color Depth 16.7M (8-bit), 72% NTSC
Response Time 25 ms (Typ.) (Tr+Td)
Backlight Type WLED, 50K hours, With LED Driver
Power Supply 3.3V (Typ.)

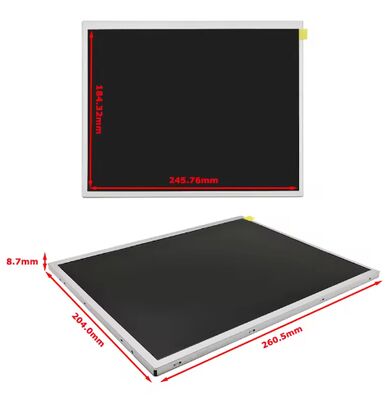

Active Area (AA) 245.76(H) x 184.32(V) mm
Outline Size 260.5(H) x 204(V) x 8.7(D) mm
Panel Weight 450g
Operating Temperature -20°C ~ +70°C
Storage Temperature -30°C ~ +80°C
Compliance RoHS Compliant
Key Features
  • 12.1-inch industrial-grade TFT LCD with 1024x768 XGA resolution for sharp, clear display
  • ADS normally black transmissive technology with 1200:1 high contrast ratio for deep blacks
  • 88/88/88/88 ultra-wide viewing angle for consistent image quality from all directions
  • 500cd/m² high brightness for excellent visibility in bright and industrial environments
  • 16.7M true colors with 72% NTSC color gamut for vivid and accurate color reproduction
  • 25ms fast response time for smooth motion performance in dynamic display applications
  • Long-life WLED backlight system with 50K hours lifespan and integrated LED driver
  • LVDS 1-channel 8-bit 20-pin interface for stable and reliable signal transmission
  • Industrial-grade temperature range (-20°C~+70°C) for harsh environment applications
  • Compact 8.7mm thickness design for easy integration into embedded systems and devices
  • Original BOE panel quality with 12-month warranty and comprehensive after-sales support
  • RoHS compliant, meeting international environmental and safety standards
Applications
  • Industrial control panels and HMI (Human-Machine Interface) systems
  • Medical equipment and diagnostic display solutions
  • Embedded systems and industrial automation devices
  • Digital signage and commercial display terminals
  • Test and measurement instruments and industrial monitors
  • Automotive display and in-vehicle infotainment systems
  • Portable industrial devices and handheld terminals
  • Gaming machines, kiosks and self-service terminals
  • Aerospace and defense display applications
  • Smart home and IoT control panel displays
Product Documentation
12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control 0
Product Image
12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control 1
Application examples in industrial and consumer devices
12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control 2
Partner companies and collaborative projects
12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control 3
Manufacturing facility and quality control environment
12.1 Inch BOE PV121X0M-N10 TFT LCD Display Module 1024x768 XGA LVDS Interface for Industrial Control 4
Shipping methods and delivery information
