Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply
  • name
  • name
  • name

Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply

MOQ: 5 pieces
Price: $5.71-6.99/pieces
Standard Packaging: 18*16*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMC2004SB-X05
Highlight:

STN Blue Negative LCD Module

,

5V Logic Supply LCD Display

,

Wide Temperature Range COB LCD Module

Product Description
Monochrome 20x4 COB LCD Module
Industrial-grade 20x4 character LCD module featuring advanced COB (Chip On Board) packaging design with STN blue negative transmissive display. This monochrome display delivers high contrast and clear readability, driven by professional ST7066U+ST7065 driver ICs.
Product Specifications
Display Type Monochrome COB Character LCD Module (STN/Blue, Negative, Transmissive)
Part Number YMC2004SB-X05
Display Format 20 characters × 4 lines
Driver IC ST7066U + ST7065
Connection Type COB (Chip On Board)
Interface Type 18-pin Parallel Interface
Logic Supply Voltage 5.0V DC (Typical)
LCD Driving Voltage 4.7V DC (Typical)
Driving Method 1/16 Duty, 1/5 Bias
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Viewing Direction 6 O'clock
Backlight Type White Side Backlight, 3.0V±0.2V, 45*2mA
Module Dimensions 146.00mm(W) × 62.50mm(H) × 13.10mm(T)
Compliance RoHS
Key Features
  • 20×4 character COB packaging with high contrast STN blue negative display
  • Professional ST7066U+ST7065 driver ICs with 1/16 Duty & 1/5 Bias driving method
  • 18-pin parallel interface compatible with mainstream embedded control systems
  • Stable 5.0V logic supply voltage matching industrial standards
  • 6 O'clock optimized viewing direction for front-facing operation
  • White side LED backlight suitable for low-light environments
  • Wide temperature adaptability for harsh industrial conditions
  • Precise mechanical dimensions with detailed mounting parameters
  • COB chip-on-board design for high structural reliability
  • RoHS compliant for global market access
Applications
  • Industrial control equipment and intelligent operation control panels
  • Portable measuring instruments and precision electronic test meters
  • Smart home appliance control panels and character display screens
  • Embedded system display modules and IoT terminal control devices
  • Medical portable devices and health monitoring equipment
  • Handheld consumer electronics and battery-powered products
  • Office equipment and small instrument display interfaces
  • Smart sensor terminals and industrial data acquisition equipment
  • DIY electronic projects and embedded development kits
  • Automotive electronic auxiliary display components

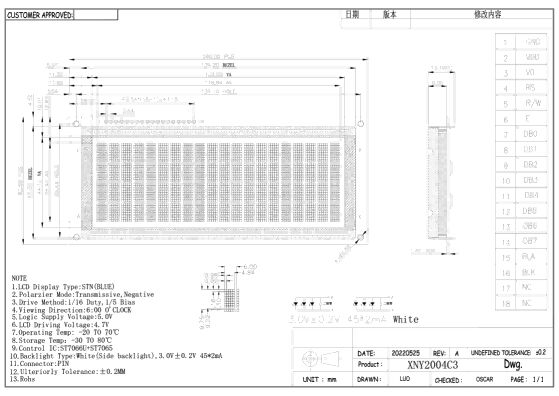

Product Documentation
Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply 0 Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply 1
Company Information
Shenzhen Yingzhanying Technology Co., Ltd. was founded in January 2018 and is located in Shenzhen, China—a global hub of the electronics industry. Its predecessor is Shenzhen Shengyuan Optoelectronics Co., Ltd., established in 2013. The company has always been committed to custom services, R&D, sales and after-sales services in the optoelectronic display industry.
The company's products include Liquid Crystal Display (LCD) modules (LCM), touch modules, LCD panels, FPC (Flexible Printed Circuit) boards and various optoelectronic materials. These products are widely used in industrial control, medical equipment, handheld devices, instruments and meters, automotive electronics, digital wearables, household appliances, financial services and other fields.
Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply 2 Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply 3 Monochrome 20x4 COB LCD Module with STN Blue Negative Display 5V Logic Supply 4
