YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560
  • name
  • name
  • name

YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560

MOQ: 500
Price: $4.5-5/pieces
Standard Packaging: 16*15*6(cm)/23g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBN022DES-Q1(MSP2201)
Type:
SPI Display
Display Size:
2.2 Inch
Supplier Type:
Factory
Highlight:

2.2 inch SPI Display

,

176*220 Resolution LCD Module

,

SPI Interface TFT Display

Product Description

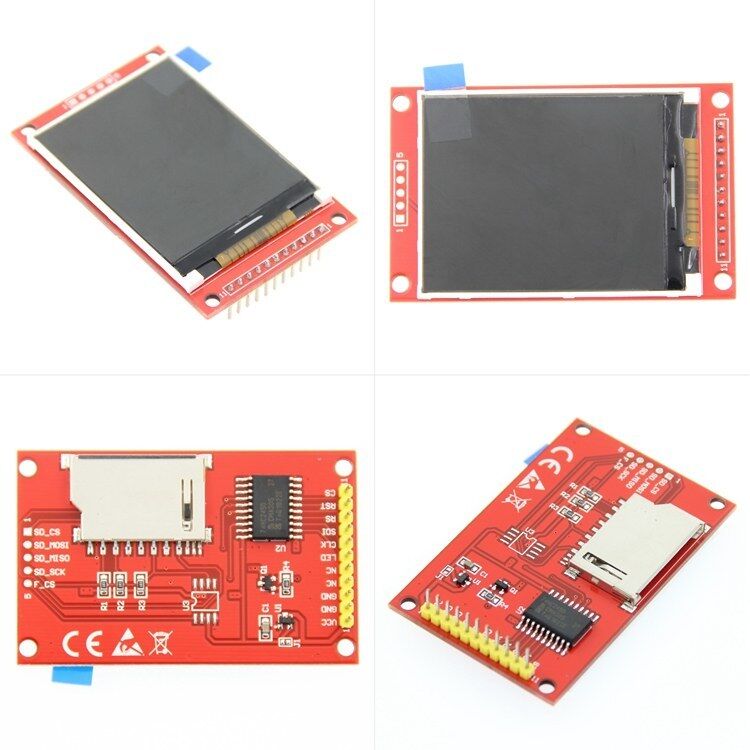

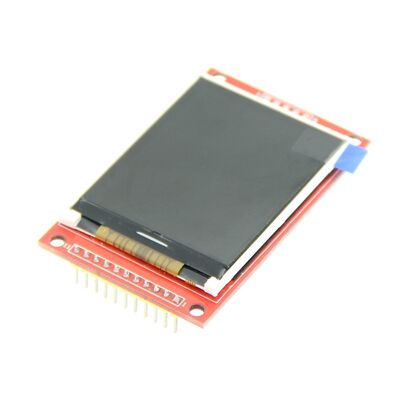

YBN022DES-Q1 2.2-inch SPI Display with 176×220 Resolution LCD Module Compatible with UNO Mega2560
High-performance 2.2-inch SPI display module with 176×220 resolution, designed for compatibility with Arduino UNO and Mega2560 platforms.
YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560 0
Product Features
  • 2.2-inch color screen supporting 16BIT RGB 65K color display for rich color reproduction
  • 176×220 high resolution for clear, sharp display quality
  • SPI serial bus interface requiring minimal I/O pins to operate
  • Integrated SD card slot for convenient function expansion
  • Comprehensive underlying libraries and sample programs for Arduino, C51, and STM32 platforms
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support provided
Technical Specifications
Parameter Specification
Size 2.2 inch
SKU MSP2201
Resolution 176×220 dots
Module Interface 4-wire SPI interface
Display Color 16BIT RGB 65K color
Active Area 34.85×43.56 (mm)
Dimensions 42.46×67.20 (mm)
Operating Voltage 3.3V / 5V
Power Consumption 0.42W
Weight 23g

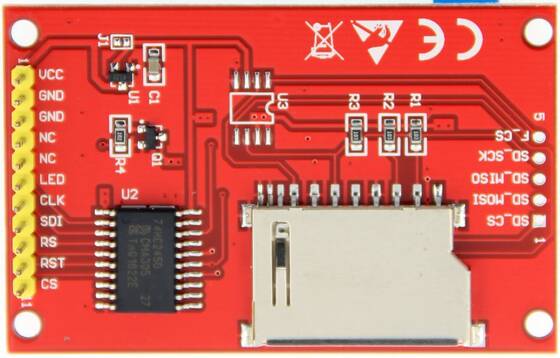

Interface Description
YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560 1
Connection to Arduino
YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560 2
Arduino UNO direct insertion
YBN022DES-Q1 2.2-inch SPI Display LCD Module with 176*220 Resolution and SPI Interface for Arduino UNO Mega2560 3
Arduino Mega2560 direct insertion
