YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface
  • name
  • name
  • name

YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface

MOQ: 500
Price: $4.6-5.2/pieces(MSP2401);$5.4-6.2/pieces(MSP2402)
Standard Packaging: 16*15*6(cm)/36g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBN024GES-Q1(MSP2401)/YBR024GES-Q1(MSP2402)
Type:
SPI Display
Display Size:
2.4 Inch
Supplier Type:
Factory
Highlight:

2.4-inch SPI Display

,

320*240 Resolution LCD Module

,

SPI Interface TFT Display

Product Description

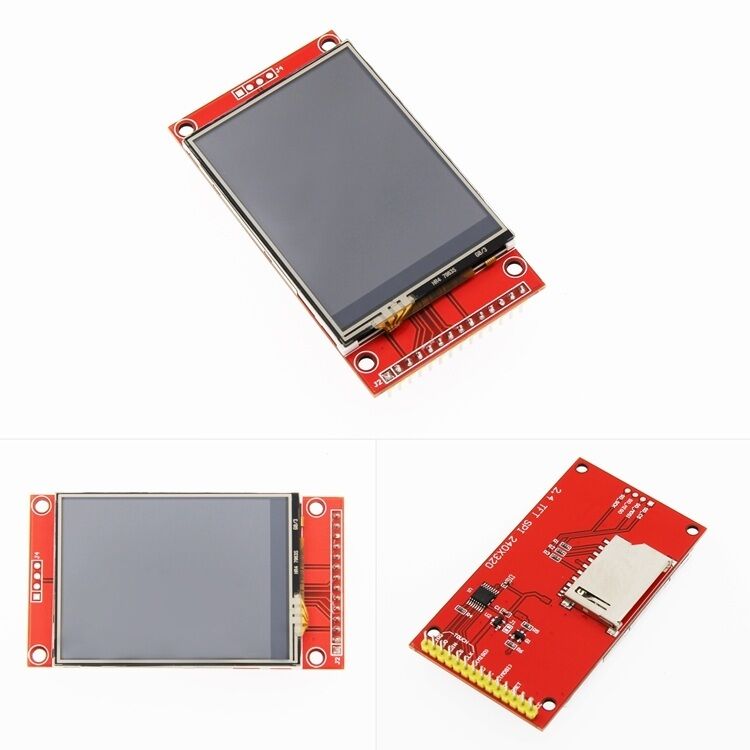

YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320×240 Resolution and SPI Interface
High-performance 2.4-inch SPI display LCD module featuring 320×240 resolution and SPI interface for embedded applications.
YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface 0
Product Features
  • 2.4-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • Easy expansion capabilities with integrated SD card slot
  • Comprehensive sample programs and code libraries
  • Military-grade manufacturing standards for long-term reliability
  • Complete underlying driver technical support
Technical Specifications
Parameter Specification
Size 2.4 inch
SKU MSP2401 (No Touch); MSP2402 (With Touch)
Resolution 320×240 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 36.72×48.96 mm
Dimensions 77.18×42.72 mm
VCC Power Voltage 3.3V / 5V
Power Consumption 0.57W
Logic IO Port Voltage 3.3V (TTL)
Weight No touch: 26g / With touch: 36g

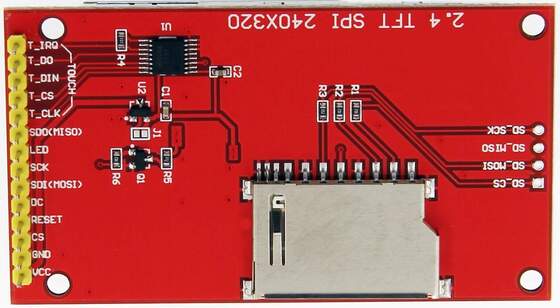

Interface Description
YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface 1 YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface 2
YBN022EGS-Q1 Interface Pinout

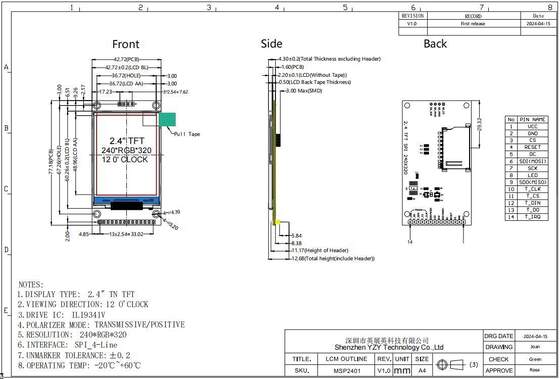

Product Dimensions
YBN024GES-Q1 2.4-inch SPI Display LCD Module with 320*240 Resolution and SPI Interface 3
