YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
  • name
  • name
  • name

YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications

MOQ: 500
Price: $4.8-5.4/pieces(MSP2807);$4.2-4.8/pieces(MSP2806)
Standard Packaging: 16*15*6(cm)/43g
Delivery Period: 30-45days
Payment Method: T/T
Supply Capacity: 50K/Month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
YZY
Certification
CE/ROHS
Model Number
YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)
Document
YBR028EGS-Q1（MSP2807） D...et.pdf
Type:
SPI Display
Display Size:
2.8 Inch
Supplier Type:
Factory
Highlight:

2.8 inch SPI Display

,

240*320 Resolution LCD Module

,

SPI Interface TFT Display

Product Description

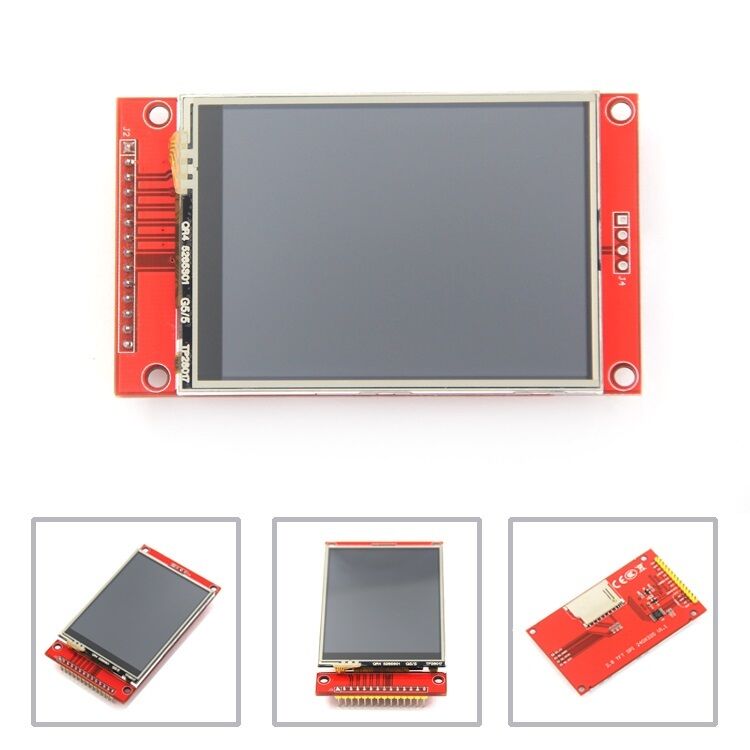

YBR028EGS-Q1 2.8-inch SPI Display LCD Module
High-performance 2.8-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 0
Product Features
  • 2.8-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • SD card slot for easy experiment expansion
  • Comprehensive sample programs provided
  • Military-grade process standards for long-term stable operation
  • Complete underlying driver technical support
Technical Specifications
Size2.8 inch
SKUMSP2806 (No Touch); MSP2807 (With Touch)
Resolution240×320 dots
Module Interface4-wire SPI interface
Display ColorRGB 65K color
Active Area43.2×57.6 mm
Dimensions50.0×86.0 mm
VCC Power Voltage3.3V / 5V
Luminance230 Cd/m² (no touch); 190 Cd/m² (with touch)
Driver ICILI9341
Power Consumption0.31W
Logic IO Port Voltage3.3V (TTL)
WeightNo touch: 34g / With touch: 43g
Interface Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 1

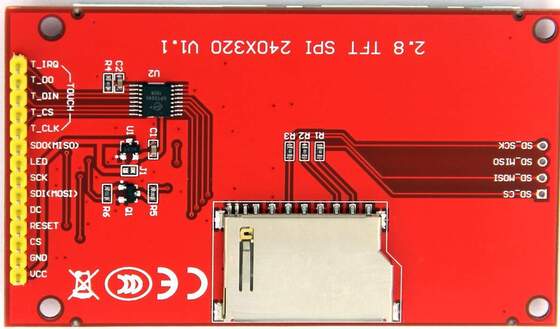

YBR028EGS-Q1 Interface Pinout
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 2

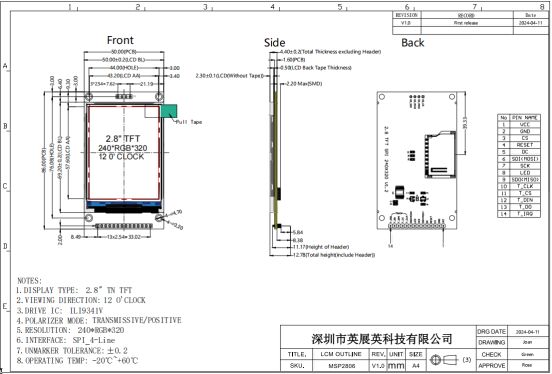

Product Dimensions
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 3
