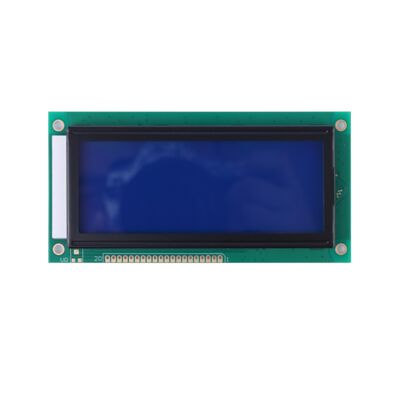

YZY COB Dot Matrix LCD Module with 192×64 High-Resolution STN Blue Negative Display
  • name
  • name
  • name

YZY COB Dot Matrix LCD Module with 192×64 High-Resolution STN Blue Negative Display

MOQ: 5 pieces
Price: $5.59-7.28/pieces
Standard Packaging: 20*15*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG19264SB-X01
Highlight:

192×64 high-resolution COB Dot Matrix LCD Module

,

5.0V logic supply Monochrome LCD Display

,

Wide temperature range STN Blue Negative Display

Product Description
YZY YMG19264SB-X01 COB Dot Matrix LCD Module
Industrial-grade 192x64 COB Dot Matrix LCD Module with STN Blue Negative display, driven by SBN0064/SBN6400 ICs at 5.0V logic supply, supporting high-resolution monochrome graphic display.
Product Overview
This high-performance 192x64 dot matrix LCD module features advanced COB packaging with STN blue negative transmissive display, delivering exceptional contrast and clarity. Powered by professional SBN0064/SBN6400 driver ICs, it offers 5.0V DC logic supply, 20-pin parallel interface, and wide temperature adaptability for industrial control, medical devices, and embedded system applications.
Technical Specifications
Display Type Monochrome COB Dot Matrix LCD Module (STN/Blue, Negative, Transmissive)
Part Number YMG19264SB-X01
Display Format 192(Dots) * 64(Dots)
Driver IC SBN0064 + SBN6400
Interface Type 20-pin Parallel Interface (Standard 8-bit Data + Control Pins)
Logic Supply Voltage 5.0V DC (Typ., ±10%)
LCD Driving Voltage VDD: 5.0V; VLCD: 12.0V
Driving Method 1/64 Duty, 1/9 Bias
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Viewing Direction 6 O'clock
Backlight Type White LED Backlight, Vf=5.0V±0.2V, If=60mA (4 Diodes)
Module Dimension 130.00mm(W) * 65.00mm(H) * 12.4mm(T)
Active Area 97.50mm(W) * 32.43mm(H)
Compliance RoHS
Key Features
  • 192*64 high-resolution COB dot matrix design with STN blue negative transmissive display for superior contrast
  • Professional SBN0064/SBN6400 driver ICs with 1/64 Duty & 1/9 Bias driving method for stable operation
  • 20-pin parallel interface with complete control logic, compatible with mainstream embedded systems
  • 5.0V standard logic supply voltage for easy integration with industrial power systems
  • 6 O'clock optimized viewing direction for front-facing operation and optimal readability
  • Integrated white LED backlight with uniform illumination for low-light environments
  • Excellent wide temperature range performance for harsh environmental conditions
  • Precision mechanical dimensions with standardized mounting holes for easy installation
  • High-reliability COB packaging structure with strong anti-vibration and anti-fall performance
  • RoHS compliant, meeting global environmental protection standards
Applications
  • Industrial control equipment: PLC panels, intelligent controllers, automation systems
  • Medical devices: portable medical instruments, health monitoring equipment
  • Automotive electronics: vehicle auxiliary displays, car data display panels
  • Smart home appliances: home appliance control panels, intelligent device displays
  • Measuring instruments: precision electronic meters, data acquisition instruments
  • Embedded systems: IoT terminal control devices, battery-powered display products
  • Office equipment: small instrument display interfaces, office automation control panels
  • Communication equipment: communication base station displays, industrial communication devices

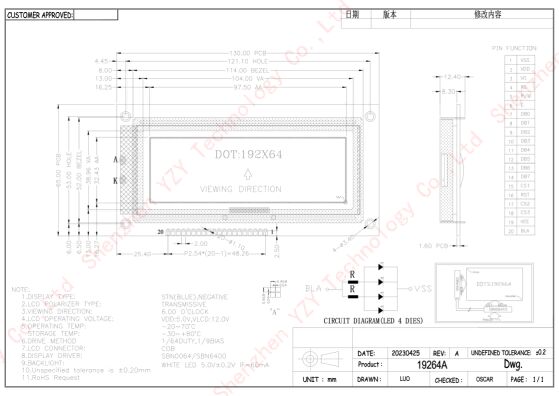

Product Documentation
YZY COB Dot Matrix LCD Module with 192×64 High-Resolution STN Blue Negative Display 0
YZY COB Dot Matrix LCD Module with 192×64 High-Resolution STN Blue Negative Display 1
