YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display
  • name
  • name
  • name

YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display

MOQ: 5 pieces
Price: $4.78-5.99/pieces
Standard Packaging: 20*15*5
Delivery Period: 14-60 days
Payment Method: T/T
Supply Capacity: 10000 pieces
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Guangdong, China
Brand Name
YZY
Certification
CE, ROHS
Model Number
YMG12864SB-X15
Highlight:

STN Blue Negative 128x64 LCD Module

,

ST7920/ST7921 IC Dot Matrix LCD

,

5V Logic Supply Monochrome LCD Display

Product Description

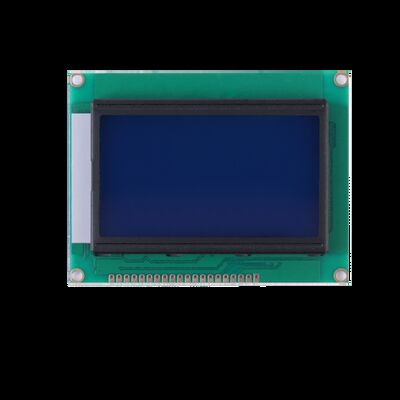

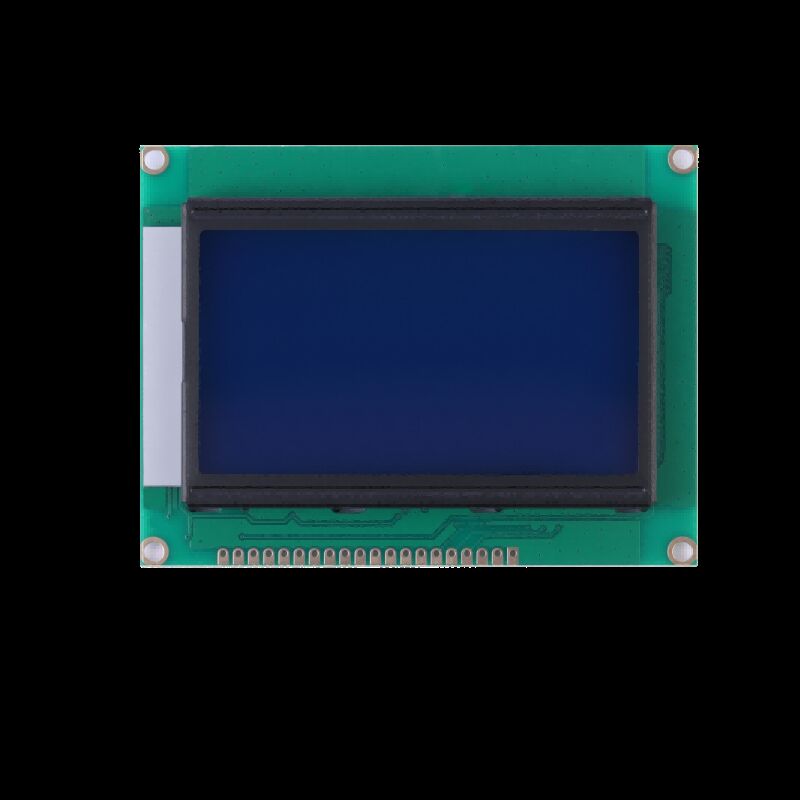

YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display Driven by ST7920/ST7921 IC and 5V Logic Supply
Monochrome YMG12864SB-X15 COB Dot Matrix LCD Module with STN Blue Negative display, driven by ST7920/ST7921 ICs at 5.0V logic supply and 4.7V LCD driving voltage.
Product Overview
This industrial-grade 128x64 dot matrix LCD module features advanced COB (Chip On Board) packaging with STN blue negative transmissive display for high contrast monochrome effect. Driven by professional ST7920/ST7921 driver ICs, it offers reliable performance with 5.0V DC logic supply, 4.7V LCD driving voltage, 20-pin parallel interface, and excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage).
Technical Specifications
Display Type Monochrome COB Dot Matrix LCD Module (STN/Blue, Negative, Transmissive)
Part Number YMG12864SB-X15
Display Format 128(Dots) × 64(Dots)
Display Driver IC ST7920 + ST7921
Interface Type 20-pin Parallel Interface
Logic Supply Voltage (VDD) 5.0V DC (Typ.)
LCD Driving Voltage (VLCD) 4.7V DC (Typ.)
Driving Method 1/64 Duty, 1/9 Bias
Operating Temperature -20℃ ~ +70℃
Storage Temperature -30℃ ~ +80℃
Viewing Direction 6:00 (6 O'clock)
Backlight Type White LED, Vf=2.8~3.2V, If=60mA

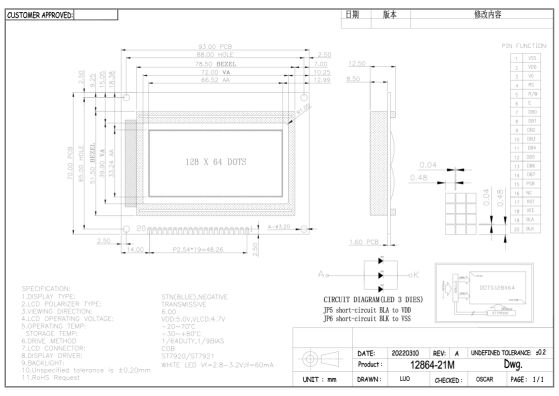

Module Dimension 93.00mm(W) × 70.00mm(H) × 12.5mm(T)
Bezel Size 78.50mm(W) × 51.50mm(H)
Viewing Area (VA) 72.00mm(W) × 39.90mm(H)
Effective Area (AA) 66.52mm(W) × 33.24mm(H)
Mounting Hole Size Φ3.20mm
Pin Pitch P2.54mm (20 pins)
Unspecified Tolerance ±0.20mm
Compliance RoHS Request
Key Features
  • 128×64 dot matrix COB packaging with STN blue negative transmissive display for high contrast and clear readability in industrial applications
  • Professional ST7920/ST7921 driver ICs with 1/64 Duty & 1/9 Bias driving method for stable long-term operation and reliable signal control
  • 20-pin parallel interface with standard control logic (VSS, VDD, VO, RS, R/W, E, DB0~DB7, PSB, RST, VEE, CSA, NC, BLA, BLK), fully compatible with mainstream embedded systems and MCUs
  • Stable 5.0V logic supply voltage and 4.7V LCD driving voltage, matching industrial standard power specifications for easy system integration
  • 6:00 optimized viewing direction for front-facing operation without visual distortion, ideal for industrial control panels and measuring instruments
  • High-brightness white LED backlight (Vf=2.8~3.2V, If=60mA) with uniform illumination for clear visibility in low-light environments
  • Excellent wide temperature adaptability (-20~70℃ operating, -30~80℃ storage), ensuring reliable performance in harsh industrial conditions
  • Precise mechanical dimensions with detailed mounting hole parameters (4×Φ3.20mm) for consistent and secure assembly

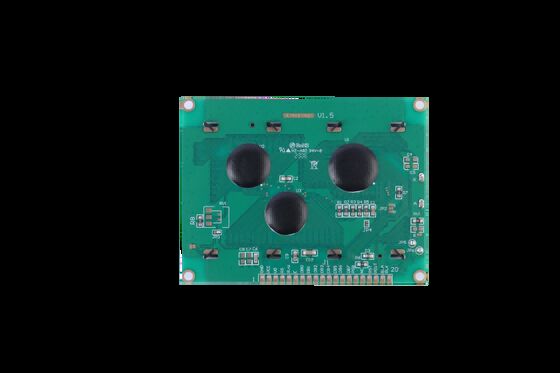

  • COB chip-on-board structural design for high structural reliability, anti-vibration and anti-fall, suitable for long-term industrial use
  • RoHS compliant, meeting environmental protection requirements for global market access
Applications
  • Industrial control equipment and intelligent operation control panels
  • Precision measuring instruments and electronic test meters
  • Smart home appliance control panels and graphic display screens
  • Embedded system display modules and IoT terminal control devices
  • Medical portable devices and health monitoring equipment
  • Automotive electronic auxiliary display components and vehicle-mounted monitors
  • Office automation equipment and small instrument display interfaces
  • Smart sensor terminals and industrial data acquisition equipment
  • DIY electronic projects and embedded development kits
  • Digital wearable devices and battery-powered display products
Product Documentation
YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 0 YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 1 YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 2 YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 3 YZY 128x64 Dot Matrix LCD Module with STN Blue Negative Display 4
